Payload: ≥1000kg
Driving Range：Up to 200/300/Unlimited (km)
Cargo volume: ≥5.2 cubic meter

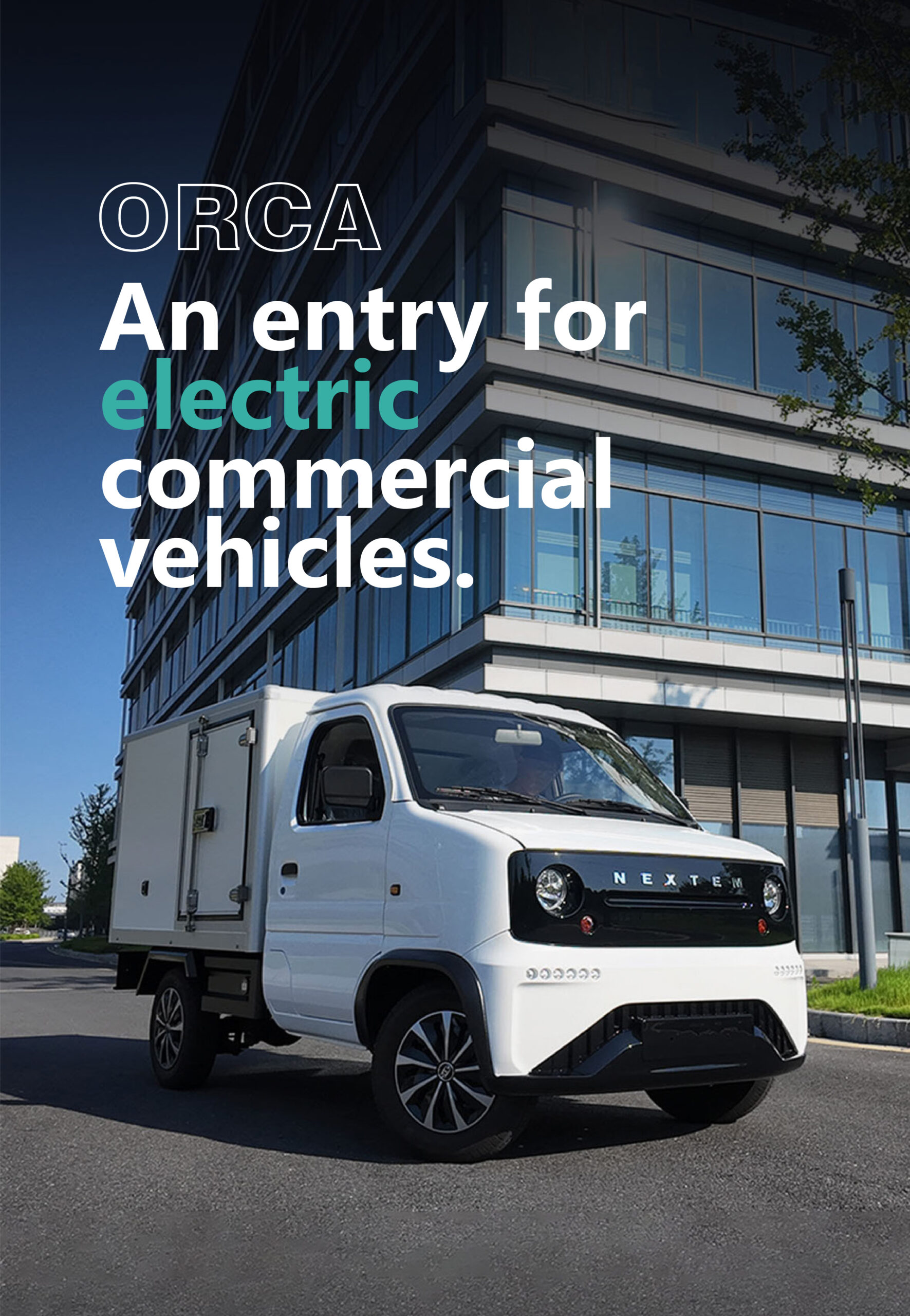

Orca
Simplicity, versatile, compact, and light weight micro vehicle platform with good payload.
Good all-round performances – economical, speed, acceleration, gradability.
Multi-functional models for diverse applications.
An entry for electric commercial vehicles.
Safety features include emergency stop, and remote operation.
Build your fleet with Nextem
When you need to customize your fleets, and business model, Nextem can engineer our Clean Energy Mobility solutions to suit your need.
Cargo space design
Vehicle powertrain
Driver cabin
Vehicle chassis
Vehicle Front View
Aesthetically pleasing looksOption for customized
colour to match your corporate colour scheme.
“Open Ended”platform
With one-size-fits all concept, ORCA chassis allows
customers to design their multi-functional variants.
Nextem electric system on ORCA is matured, simple
and easy to adapt for different applications.
Cab for LHD and RHD
Very spacious cab for LHD and RHD.User friendly
digital monitoring systems providing driver with
the necessary vehicle information, including real
time vehicle status.

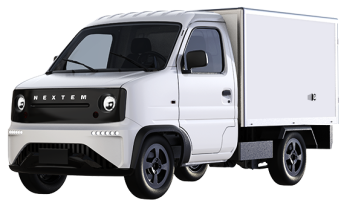

ORCA

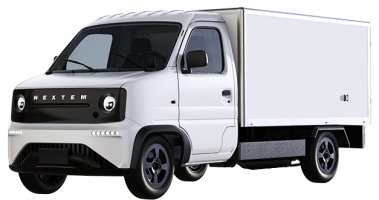

ORCA XL
| · PLATFORM | |
|---|---|
| LENGTH(mm) | 4000(Std)/4300(Option) |
| WIDTH(mm) | 1600 |
| HEIGHT(mm) | 1890 |
| WHEELBASE(mm) | 2495 |
| CURB(kg) | 1200 |
| · PERFORMANCE | |
|---|---|
| PAYLOAD(kg) | 1045 |
| RANGE(km) | 200 |
| MOTOR POWER | 15KW/30kW(Peak) |
| DRIVE MODE | 2WD Rear |
| MAX SPEED(km/h) | 85 |
| CHARGING TIME | 5h |
| MAX GRADEABILITY | 28% |
| PEAK TORQUE | >150 Nm |
| · BATTERY | |
|---|---|
| BATTERY TYPE | LFP |
| BATTERY CAPACITY(kWh) | 15 |
| BATTERY CAPACITY(kWh) | 33 |
| · REAR COMPARTMENT DIMENSION | |
|---|---|

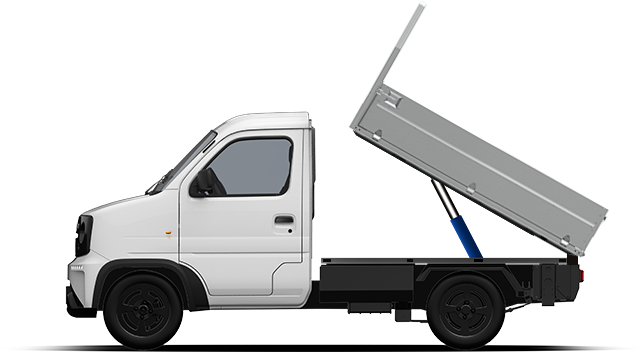

| PICKUP BED/ TIPPER (mm) | 2010*1600*400 |
| STD BOX DIMENSION(mm) | 2010*1600*1210 |
| HIGH BOX DIMENSION(mm) | 2010*1600*1610 |
| · PLATFORM | |
|---|---|
| LENGTH(mm) | 4700 |
| WIDTH(mm) | 1600 |
| HEIGHT(mm) | 1890 |
| WHEELBASE(mm) | 3000 |
| CURB(kg) | 1350 |
| · PERFORMANCE | |
|---|---|
| PAYLOAD(kg) | 1170 |
| RANGE(km) | 300 |
| MOTOR POWER | 40KW(Peak) |
| DRIVE MODE | 2WD Rear |
| MAX SPEED(km/h) | 85 |
| CHARGING TIME | <1h |
| MAX GRADEABILITY | 28% |
| PEAK TORQUE | >165 Nm |
| · BATTERY | |
|---|---|
| BATTERY TYPE | LFP |
| BATTERY CAPACITY(kWh) | 46 |
| · REAR COMPARTMENT DIMENSION | |
|---|---|
| PICKUP BED/ TIPPER (mm) | 2700*1600*400 |
| STD BOX DIMENSION(mm) | 2700*1600*1210 |
| HIGH BOX DIMENSION(mm) | 2700*1600*1610 |
